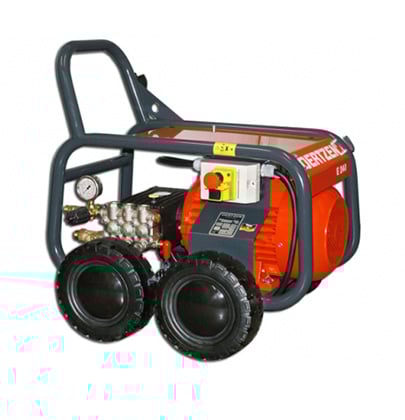

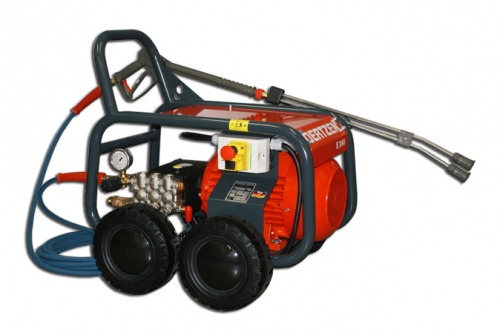

OERTZEN E 240
Cold water high pressure cleaner
3 cyl. inline plunger pump 23 l/min
(brass pump head, ceramic plungers)
flanged to electric motor
motor/pump rpm 1420 1/min – slowly, quietly running machine
pump system pressureless by closing spray pistol (stand by operation)
thermo valve protects pump from overheating
motor/pump unit protected by solid, surrounding steel frame (powder coated)
chassis with 4 wheels on twin axle, locking brake
hose swivel prevents hp hose from messing up
| Technical characteristics | |
|---|---|
|
Flow rate max. |
1380 l/h / 364 gal/h |
|
Unloading pressure |
250 bar / 3625 psi |
|
Working pressure max. |
230 bar / 3335 psi |
|
Water temperature max. |
cold water |
|
Standard voltage |
400 V/3~50 Hz |
|
Special voltage |
on request |
|
Pump speed |
1420 1/min |
|
Power source |
electric motor |
|
Connecting power |
8.9 kW |
|
Engine / motor output |
- |
|
Thermo valve |
standard |
|
Safety Control Stop SCS |
option |
|
Dimensions ( frame: LxWxH) |
700 x 600 x 720 mm / 27.3 x 23.4 x 28 in |
|
Weight |
96 kg / 212 lb |
|
Please notice |
technical data are subject to alterations |
